Scientific Remediation
Last Updated: April 2026

How to Stop Roof & Wall Leakage Permanently

"Painting over a wet wall or rolling black tar on a terrace only hides the problem for a few months. True waterproofing requires understanding the structural difference between a simple Top Coat and a restorative Mother Concrete Undercoat."

Why Standard "Waterproof Paint" Fails

If you have paid a contractor to fix a leaking terrace or bathroom, only for the dampness to return 8 months later, you are experiencing Delamination. Basic coatings sit loosely on top of weathering tiles or old concrete. During Chennai's intense heat, the building undergoes severe thermal expansion, tearing the rigid paint apart.

When the monsoon rain arrives, water slips under the torn elastomeric membrane, becomes trapped, and ultimately ruins your ceiling below. To stop the cycle of endless repainting, you must treat the structural core, not just the surface.

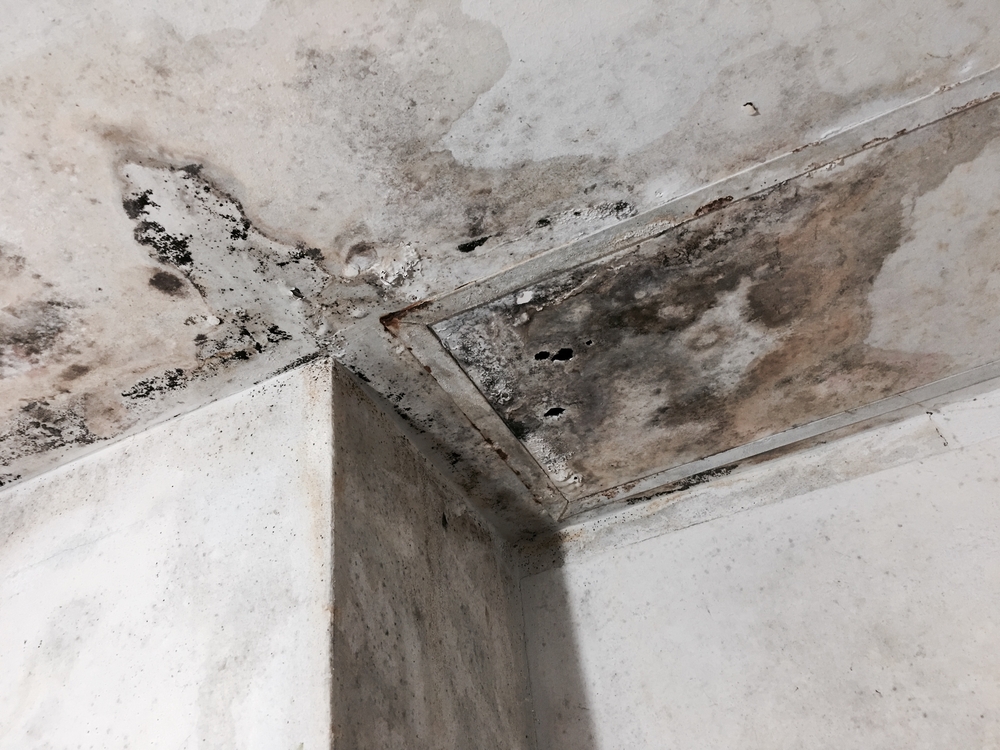

Severe waterproofing membrane failure peeling off a concrete slab

Find Your Permanent Solution

Waterproofing is not a "one-size-fits-all" chemical application. Use this interactive decision tree to find the correct structural engineering solution for your property.

Leakage Decision Tree & Estimator

Live 2026 Material & Execution Metrics

Q1. Where is the seepage originating?
Q2. What level of repair is required?
Q2. What is the severity of the bathroom leak?
Area Input 0
Recommended Solution
Scientific Methodology
Awaiting Input...
Estimated Execution Capital
₹ 0
* Rates are approximate for estimation purposes only. Final quotation depends on site inspection, access, and material choices.

The 48-Hour Pond Test Mandate

Never pay a contractor without a Pond Test. A true Structural Engineer does not trust wet paint; we demand physical proof. After the restorative waterproofing layer is applied, we block the drains and flood the terrace or bathroom floor with water for 48 continuous hours. If a single drop of moisture appears on the ceiling below, the waterproofing has failed. We do not certify the job until the Pond Test is 100% successful.

Top Coat vs. Core Engineering

The reason pricing varies so heavily depends on whether you are treating the surface, or executing a structural core repair.

1

Terrace: Top Coat vs. Mother Concrete

A Top Coat (₹60-80/SqFt) is an elastomeric layer applied above existing weathering tiles or screed. It is a cost-effective maintenance fix. However, if water is trapped under the tiles, a Full Restorative Undercoat (₹230-280/SqFt) is required. This involves breaking the tiles to reach the raw "Mother Concrete," applying heavy-duty Polyurethane (PU) chemical waterproofing directly to the structural slab, and relaying a protective screed on top. This is a permanent engineering fix.

2

Bathrooms: Regrouting vs. Core Relay

If tiles are intact but the white cement grout has washed away, we perform a non-destructive Epoxy Joint Regrouting (Approx ₹6,000/Toilet). If the plumbing pipes or base concrete has failed, we must execute a Full Core Relay (₹35k-45k/Toilet), breaking down to the mother slab, sealing it, and laying brand new tiles.

Stop Guessing. Start Fixing.

Get the right chemical for the right leak. Secure your property with our guaranteed engineering solutions and mandatory Pond Testing.

Frequently Asked Questions

Why did my terrace waterproofing fail after one year?

Most contractors apply a superficial 'Top Coat' over existing weathering tiles. Under Chennai's extreme heat, the building undergoes thermal expansion. This rigid paint cracks and delaminates, allowing water to slip underneath. Permanent waterproofing requires stripping down to the 'Mother Concrete'.

What is the 48-Hour Pond Test?

It is the ultimate engineering proof. Before we certify any restorative waterproofing job, we block the drains and flood the entire terrace or bathroom with water for 48 hours. If even a single drop penetrates the ceiling below, the test fails. We only hand over the project upon 100% success.

Is epoxy regrouting better than replacing bathroom tiles?

If the tiles themselves are sound but the white cement grout has washed away, epoxy regrouting is highly cost-effective and non-destructive. However, if the underlying concrete or plumbing pipes have failed, a full core relay is necessary to permanently stop the seepage.

By Er. S. Pughalmathi, M.Tech

Structural Engineer | Founder, Structural Sense India Pvt. Ltd. | Anna Nagar, Chennai
CMDA Registration No: RE203082022

With 19+ years of unbroken field experience, Er. S. Pughalmathi specializes in structural diagnostics, thermal imaging, and mother-concrete chemical waterproofing. Updated as of April 2026.
