Dangerous Wall Cracks? Severity & Repair Guide
The Forensic Matrix: Deciphering the Geometry
The direction, width, and location of a crack tell a CMDA Registered Structural Engineer a highly specific story about the invisible forces acting on your foundation. In regions like Chennai, highly expansive clayey subsoils significantly exacerbate foundation movement. Attempting to fill active structural cracks with basic wall putty or cement is futile; cyclic thermal movement and ongoing settlement will simply tear cosmetic putty apart within weeks.

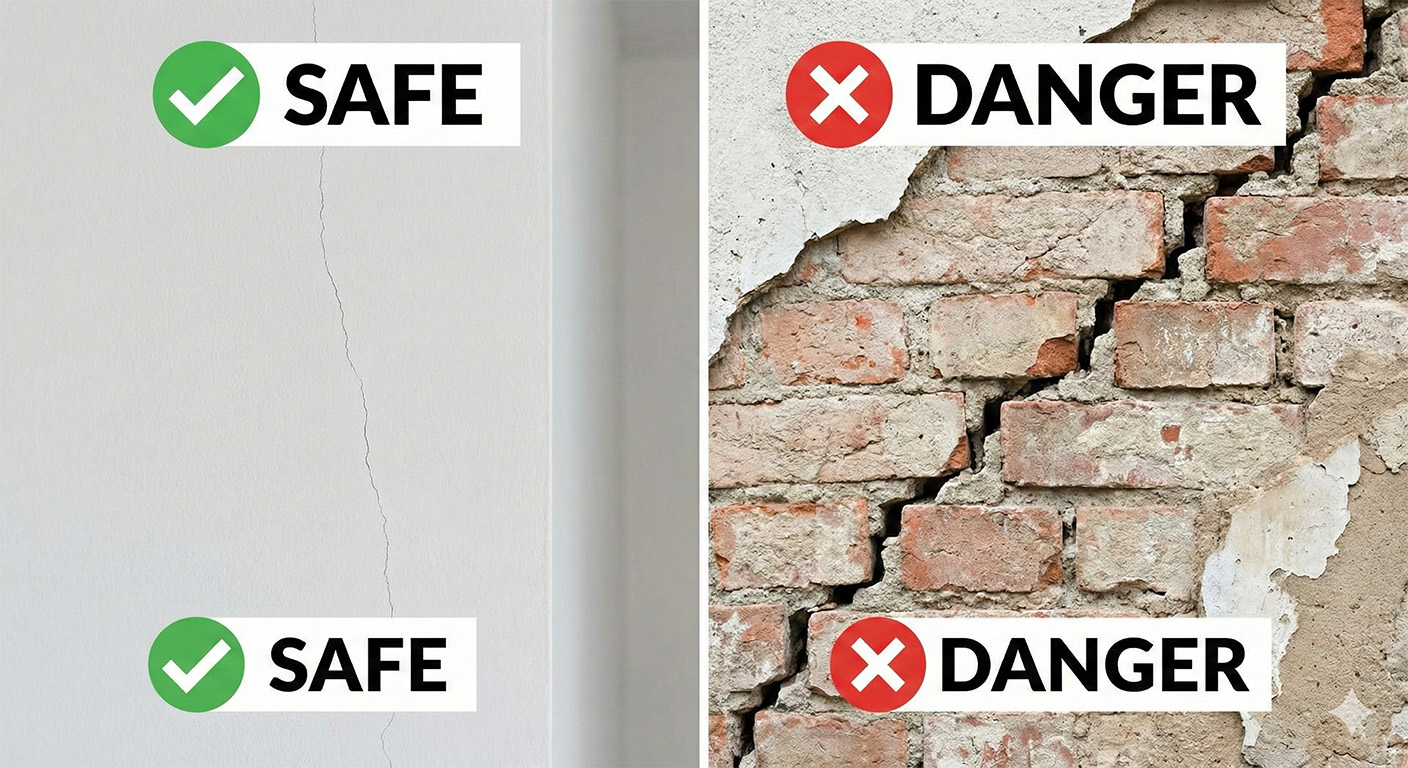

| Visual Crack Pattern | The Root Cause Pathology | Structural Risk Level |
|---|---|---|
| Map / Web Hairline Cracking Fine, interlocking hairline lines isolated in the plaster. |
Plastic Shrinkage: Rapid moisture loss during plaster curing. Does not penetrate load-bearing masonry or structural RCC columns. | Low Risk (Cosmetic Surface) |
| Vertical Separation Cracks Straight vertical lines where brickwork meets an RCC column. |
Thermal / Material Joint Tearing: Concrete and brick expand at different rates under Chennai's 40°C heat, tearing the unreinforced joint interface. | Moderate Risk (Moisture Ingress Hazard) |
| Diagonal / Stair-Step Cracks 45-degree diagonal lines stepping through brick courses. |
Foundation Settlement / Shear: One side of the footing is sinking into soft or clayey subsoil, tearing load-bearing masonry apart. | Critical Risk (Structural Failure) |
Predictive Crack Severity & Repair Estimator
Use this interactive dashboard to analyze your crack pattern. It will instantly diagnose your structural risk level and calculate the estimated 2026 cost of executing a permanent epoxy injection or stitching protocol in Chennai:
Crack Pathology Estimator
Live 2026 Structural Repair MetricsThe Two-Phased Solution: Correction & Prevention
If your diagnostic assessment shows Moderate or Critical risk, applying paint or cosmetic filler is dangerous. We execute a strict two-phase structural protocol:
Phase 1: Correction (Epoxy Grouting & Stitching)
For active separation and shear cracks, we drill injection ports along the fault line. Using high-pressure pumps, we inject high-strength, low-viscosity Epoxy Resin or PU Foam. For heavy diagonal shear cracks, we install high-tensile stainless steel stitching staples across the fissure, physically fusing the separated masonry back together with higher tensile strength than the original brickwork.
Phase 2: Prevention (Addressing Foundation Settlement)
If the root cause is diagnosed as severe foundation settlement (diagonal stair-step cracks), sealing the wall crack is useless if the building continues to sink. We engineer permanent geotechnical solutions such as foundation underpinning or micropiling to arrest further subsoil movement.
Take Action: Diagnosis & Permanent Repair
Do not wait for a moderate thermal separation crack to progress into a catastrophic foundation failure:
1. Find the Root Cause (Audit)
Book a ₹5,900 Structural Site Audit. Our engineers will utilize digital crack gauges to map load paths, analyze settlement patterns in Chennai's variable soil, and determine the exact forensic cause.
2. Execute the Repair (Remediation)
Already have an engineering report? Engage our ISO 9001:2015 certified execution team to perform high-pressure epoxy injection grouting and permanent structural stitching.
