Types of Wall Cracks: When to Worry?
The Danger of Misdiagnosis
The biggest mistake property owners make is treating every crack as a harmless paint defect. If you instruct a local painter to fill a Structural Shear Crack with wall putty, the building will continue to settle, the putty will tear open within weeks, and the core structural damage will only worsen in secret.
Interactive Crack Identifier Tool
Use this diagnostic dashboard to evaluate your visual symptoms. By cross-referencing the shape of the crack with its physical location, we can predict if it is a cosmetic issue or a structural emergency.
Visual Pathology Identifier
Select your crack type below
Recommended Action
Do not use putty. This indicates the foundation is sinking or yielding. An immediate structural audit is required to prevent progressive collapse.
The Structural Triage Protocol
As a Structural Engineer, I separate crack failures into three distinct categories. Understanding these is the key to preventing wasted money on useless paint jobs.
Cosmetic Shrinkage (No Need to Worry)
These are hairline "map" cracks that only exist in the surface plaster. They are caused by plastic shrinkage during the curing process or minor thermal fluctuations. Action: Can be safely routed and filled with elastomeric sealants by a skilled painter.
Thermal Separation (Monitor Closely)
Perfectly vertical cracks that appear right where a brick wall meets a concrete column. Because concrete and brick expand differently in Chennai's heat, the joint tears open. Action: Requires professional PU injection grouting to seal against moisture, but the building is not collapsing.

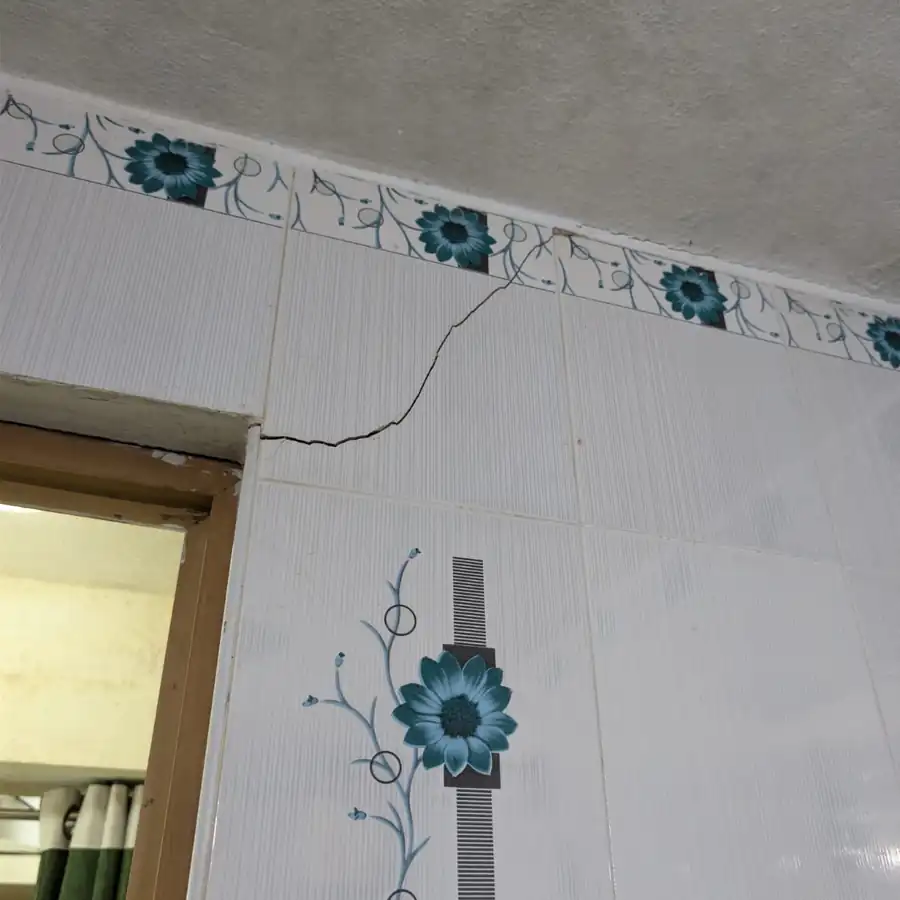

Active Shear Cracks (Call an Engineer)
Deep, diagonal stair-step cracks slicing through brickwork, or horizontal cracks across concrete columns. This means the actual load-bearing skeleton of the building is tearing or bending. Action: Requires an immediate forensic audit, followed by foundation underpinning or CFRP retrofitting.
